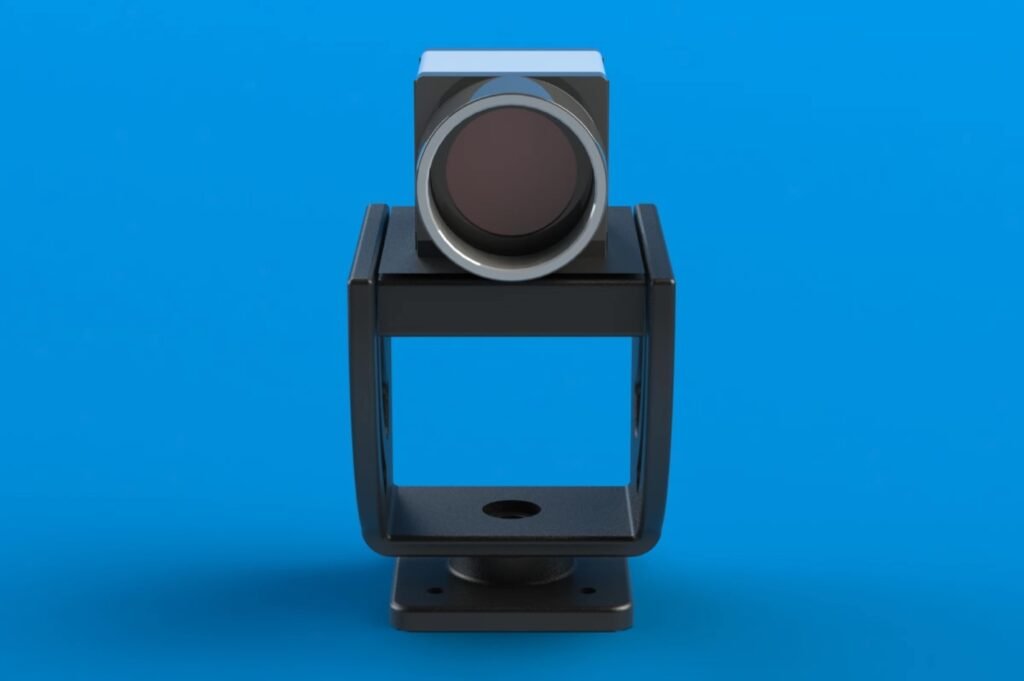

Adjustable IDS Ueye Camera Mount​

Design Problem

Role: Designer

Project deliverables: Renders, CAD files, 3d-printed prototype

During my internship, I worked on an application that involved using IDS cameras at an angle. To proceed, we needed a small camera stand and an IDS mounting plate adapter. These were relatively expensive and would have added significantly to project costs.

The Solution

I got around this issue by developing this 3d-printable design which makes use of m5 nuts and bolts to achieve adjustable positioning.

Sustainable design features:

  • Use of readily-available threaded fasteners
